AZ100E142

ECL/PECL 9-bit Shift Register

AZ100E142 Features

* 700 MHz Minimum Shift Frequency 9-Bit for Byte-Parity Application Asynchronous Master Reset Dual Clocks Operating Range of 4.2V to 5.46V 75kΩ Internal Input Pulldown Resistors Direct Replacement for ON Semi MC10E142 & MC100E142 PA

AZ100E142 General Description

The AZ10/100E142 is a 9-bit shift register, designed with byte-parity applications in mind. The E142 performs serial/parallel in and serial/parallel out, shifting in one direction. The nine inputs D0-D8 accept parallel input data, while S-IN accepts serial input data. The Qn outputs do not need to b.

AZ100E142 Datasheet (100.82 KB)

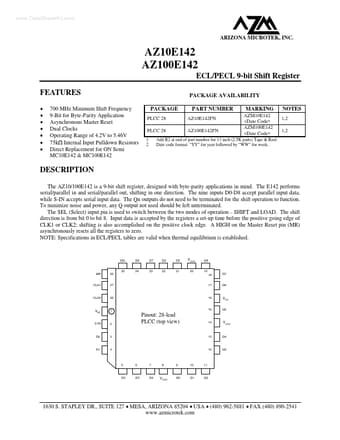

Preview of AZ100E142 PDF

Datasheet Details

Part number:

AZ100E142

Manufacturer:

Arizona Microtek

File Size:

100.82 KB

Description:

Ecl/pecl 9-bit shift register.
