AZ12000 - (AZ12000 / AZ12001) Phase-Locked Loop Clock Generator

Name: AZ12000
SKU: AZ12000-601843

📥 Download Datasheet

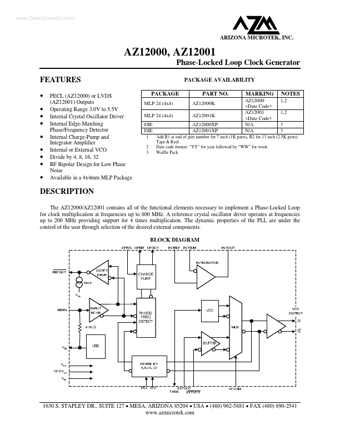

AZ12000 Datasheet Preview — Preview of AZ12000 PDF

Datasheet Details

Part number	AZ12000
Manufacturer	Arizona Microtek
File Size	214.28 KB
Description	(AZ12000 / AZ12001) Phase-Locked Loop Clock Generator
Datasheet	AZ12000_ArizonaMicrotek.pdf

AZ12000 Product details

Description

The AZ12000/AZ12001 contains all of the functional elements necessary to implement a Phase-Locked Loop for clock multiplication at frequencies up to 800 MHz.

Features

PECL (AZ12000) or LVDS (AZ12001) Outputs Operating Range 3.0V to 5.5V Internal Crystal Oscillator Driver Internal Edge-Matching Phase/Frequency Detector Internal Charge-Pump and Integrator Amplifier Internal or External VCO Divide by 4, 8, 16, 32 RF Bipolar Design for Low Phase Noise Available in a 4x4mm MLP Package.
