AZ12001, AZ12000 - (AZ12000 / AZ12001) Phase-Locked Loop Clock Generator

Name: AZ12001
SKU: AZ12001-601844

📥 Download Datasheet

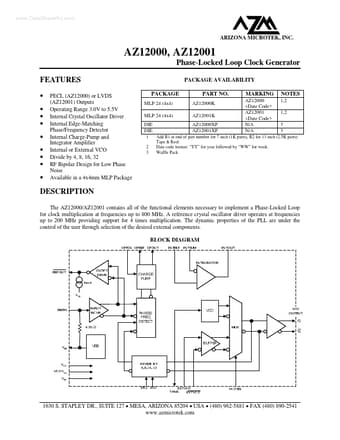

AZ12001 Datasheet Preview — This datasheet PDF includes multiple part numbers: AZ12001, AZ12000. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	AZ12001, AZ12000
Manufacturer	Arizona Microtek
File Size	214.28 KB
Description	(AZ12000 / AZ12001) Phase-Locked Loop Clock Generator
Datasheet	AZ12000_ArizonaMicrotek.pdf
Note	This datasheet PDF includes multiple part numbers: AZ12001, AZ12000. Please refer to the document for exact specifications by model.

AZ12001 Product details

Description

The AZ12000/AZ12001 contains all of the functional elements necessary to implement a Phase-Locked Loop for clock multiplication at frequencies up to 800 MHz.

Features

PECL (AZ12000) or LVDS (AZ12001) Outputs Operating Range 3.0V to 5.5V Internal Crystal Oscillator Driver Internal Edge-Matching Phase/Frequency Detector Internal Charge-Pump and Integrator Amplifier Internal or External VCO Divide by 4, 8, 16, 32 RF Bipolar Design for Low Phase Noise Available in a 4x4mm MLP Package.
