AK4120 Datasheet - Asahi Kasei Microsystems

Sample Rate Converter

AK4120 Features

* o Stereo Asynchronous Sample Rate Converter o Digital Mixer o Digital Volume o Input Sample Rate Range (FSI): 8kHz to 48kHz o Output Sample Rate (FSO): 32kHz, 44.1kHz, 48kHz and 96kHz o Input to Output Sample Rate Ratio: FSO/FSI = 0.667 to 6 o THD+N:

* 113dB at 1kHz input o I/F format: MSB ju

AK4120 General Description

The AK4120 is a stereo asynchronous sample rate converter. The input sample rate range is from 8kHz to 48kHz. The output sample rate is fixed at 32kHz, 44.1kHz, 48kHz or 96kHz. AK4120 includes a digital mixer and digital volume control. Applications for this device include pro audio mastering, consu.

AK4120 Datasheet (294.38 KB)

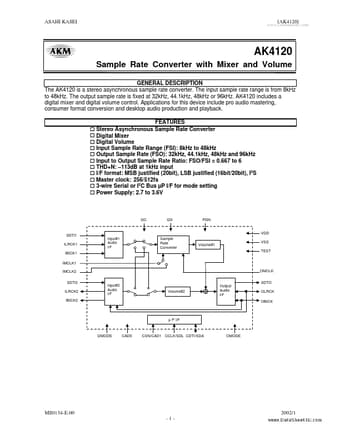

AK4120 Datasheet Preview — Preview of AK4120 PDF

Datasheet Details

Part number:

AK4120

Manufacturer:

Asahi Kasei Microsystems

File Size:

294.38 KB

Description:

Sample rate converter.
