AK4126 - 6ch 192kHz / 24-Bit Asynchronous SRC

Product Overview

Asahi Kasei Microsystems

📥 Download Datasheet

AK4126 6ch 192kHz / 24-Bit Asynchronous SRC by Asahi Kasei Microsystems - Datasheet Preview — Datasheet preview – AK4126

Datasheet Details

Part number	AK4126
Manufacturer	Asahi Kasei Microsystems
File Size	272.46 KB
Description	6ch 192kHz / 24-Bit Asynchronous SRC
Datasheet	AK4126 Datasheet

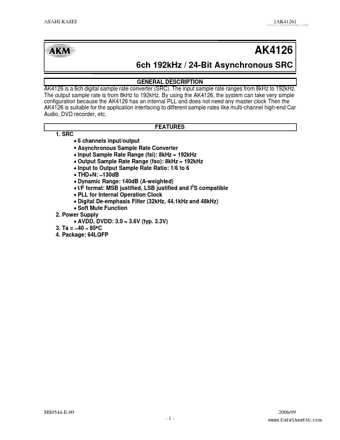

Additional preview pages of the AK4126 datasheet.

Product details

Description

AK4126 is a 6ch digital sample rate converter (SRC).

Features

1. SRC.
6 channels input/output.
Asynchronous Sample Rate Converter.
Input Sample Rate Range (fsi): 8kHz ∼ 192kHz.
Output Sample Rate Range (fso): 8kHz ∼ 192kHz.
Input to Output Sample Rate Ratio: 1/6 to 6.
THD+N:.
130dB.
Dynamic Range: 140dB (A-weighted).
I/F format: MSB justified, LSB justified and I2S compatible.
PLL for Internal Operation Clock.
Digital De-emphasis Filter (32kHz, 44.1kHz and 48k.
