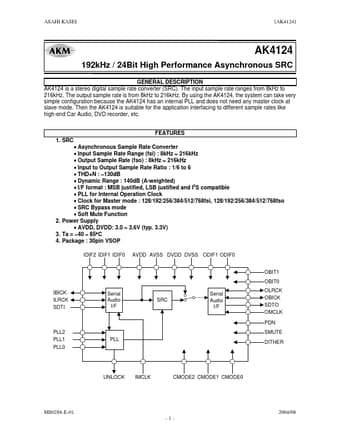

AK4124 Datasheet Preview — Preview of AK4124 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	AK4124
Manufacturer	Asahi Kasei Microsystems
File Size	216.55 KB
Description	192kHz / 24Bit High Performance Asynchronous SRC
Datasheet	AK4124_AsahiKaseiMicrosystems.pdf

AK4124 Product details

Description

AK4124 is a stereo digital sample rate converter (SRC).

Features

1. SRC.
Asynchronous Sample Rate Converter.
Input Sample Rate Range (fsi) : 8kHz ∼ 216kHz.
Output Sample Rate (fso) : 8kHz ∼ 216kHz.
Input to Output Sample Rate Ratio : 1/6 to 6.
THD+N :.
130dB.
Dynamic Range : 140dB (A-weighted).
I/F format : MSB justified, LSB justified and I2S compatible.
PLL for Internal Operation Clock.
Clock for Master mode : 128/192/256/384/512/768fsi, 128/192/256/384/512/768fso.
