AK4201

Stereo Cap-less HP-Amp

AK4201 General Description

The AK4201 is an audio stereo cap-less headphone amplifier. The AK4201 eliminates the need for large DC-blocking capacitors with a built-in Charge-pump circuit. The PSRR (Power supply Rejection Ratio) can achieve to 100dB with a built-in regulator, and it can output 2Vrms with excellent linearity wh.

AK4201 Datasheet (267.63 KB)

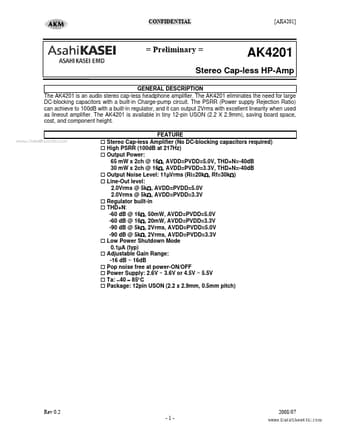

Preview of AK4201 PDF

Datasheet Details

Part number:

AK4201

Manufacturer:

Asahi Kasei Microsystems

File Size:

267.63 KB

Description:

Stereo cap-less hp-amp.
