AK4220

7:3 Audio Switch and 6:3 Video Switch

Asahi Kasei Microsystems

AK4220 Features

* www.DataSheet4U.com 1. Audio Section

* Selector for 7 inputs and 3 outputs

* Differential Input Circuit for Ground Noise Cannel

* THD+N: -92dB (@1Vrms)

* Dynamic Range: 96dB

* Channel-Independent Output Off

* Pop Noise Free Circuit for Power On/Off

AK4220 General Description

The AK4220 is an AV Switch with 7:3 Audio Switches and 6:3 Video Switches. Using CMOS process to offer the high performance with low power consumption. In the Audio section, on-chip differential input circuit could separate the external ground noise. The AK4220 integrates a pop noise free circuit fo.

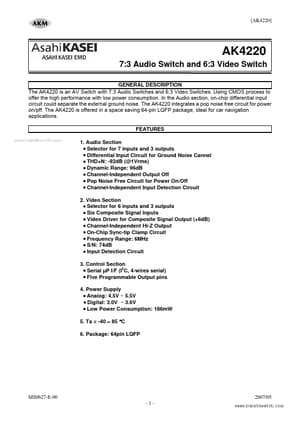

AK4220 Datasheet (593.33 KB)

AK4220 Datasheet Preview — Preview of AK4220 PDF

Datasheet Details

Part number:

AK4220

Manufacturer:

Asahi Kasei Microsystems

File Size:

593.33 KB

Description:

7:3 audio switch and 6:3 video switch.
