AK4205

Ultra Low Noise and Distortion Headphone Amp

AK4205 Features

* 1. Headphone Amplifier

* Full-differential Input

* Built-in Resistors for Gain Adjustment: Fixed to +0.5 dB @1 kHz

* 2nd order Low-pass Filter

* Ultra-Low Noise: S/N 124dB

* Ultra-Low Distortion: THD+N -118 dB @32 Ω, 34 mW THD+N -120 dB @600 Ω, 6.7 mW 2. Analog Switch

* Selec

AK4205 General Description

The AK4205 is a stereo headphone amplifier corresponding to high resolution with built-in analog switch for Hi-Fi mobile. The AK4205 achieves industry’s leading level ultra-low noise and ultra-low distortion characteristics (THD+N = -118dB). The AK4205 is available in a small 36-pin QFN package. It .

AK4205 Datasheet (776.90 KB)

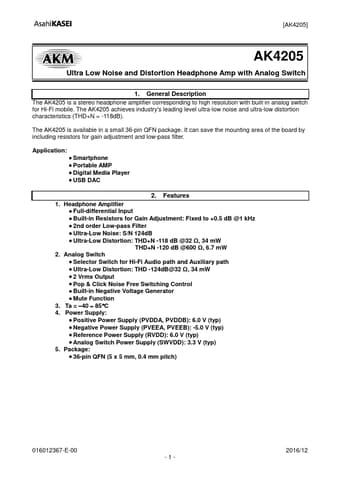

Preview of AK4205 PDF

Datasheet Details

Part number:

AK4205

Manufacturer:

AKM

File Size:

776.90 KB

Description:

Ultra low noise and distortion headphone amp.
