AK8816, AK8815 (AK8815 / AK8816) NTSC/PAL Digital Video Encoder

AK8816 Description

ASAHI KASEI [AK8815/16] www.DataSheet4U.com AK8815/16 NTSC/PAL Digital Video Encoder GENERAL .
The AK8815/16 is a digital video encoder which is developed for portable apparatus applications such as cellular phone etc.

AK8816 Features

* NTSC-M, PAL-B, D, G, H, I encoding Composite Video Output Y:Cb:Cr 4:2:2 Square Pixel Data Input H/V

AK8816 Applications

* such as cellular phone etc. . ITU-R BT.601 level compatible Y, Cb,and Cr signals which correspond to square pixel are encoded into either NTSC or PAL compatible composite video signal. Interface is made in HSYNC-, VSYNC- synchronized slave-mode operation. It is controlled via a 4-wire serial interfac

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: AK8816, AK8815. Please refer to the document for exact specifications by model.

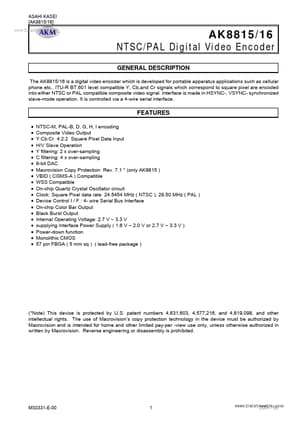

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AK8816, AK8815
Manufacturer
Asahi Kasei Microsystems
File Size
408.27 KB
Datasheet
AK8815_AsahiKaseiMicrosystems.pdf
Description
(AK8815 / AK8816) NTSC/PAL Digital Video Encoder
Note
This datasheet PDF includes multiple part numbers: AK8816, AK8815.
Please refer to the document for exact specifications by model.
