LPS60 - 60 Watts

Datasheet Summary

Features

  • Universal input.
  • 3" x 5" footprint.
  • Remote sense.
  • Built in EMI filter.
  • Low output ripple.
  • Adjustable output voltage.
  • Overload protection.
  • 110 KHz switching frequency.
  • LPX60 enclosure kit available Safety VDE 0805/EN60950 (IEC950) 11774-3336-1255 (LC #86665) UL UL1950 E132002 CSA CSA 22.2-234 Level 3 LR53982C NEMKO EN 60950/EMKO-TUE P95100123 (74-sec) 203 CB Certificate and report 1521, 1522, 1523, 1524 CE Mark (LVD.

📥 Download Datasheet

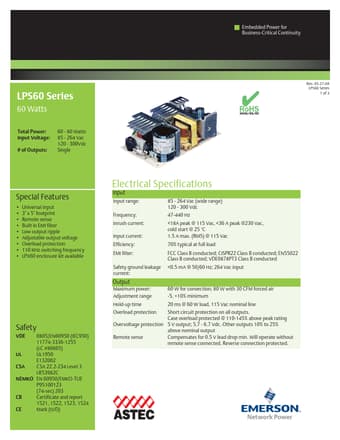

Datasheet preview – LPS60

Datasheet Details

Part number LPS60
Manufacturer Astec America
File Size 173.84 KB
Description 60 Watts
Datasheet download datasheet LPS60 Datasheet
Additional preview pages of the LPS60 datasheet.

📁 Similar Datasheet

  • LPS600 - Power Resistor (Vishay Siliconix)
  • LPS61 - LPS60 Series (ASTEC)
  • LPS61 - AC-DC / 10W - 85W (Emerson)
  • LPS62 - LPS60 Series (ASTEC)
  • LPS62 - AC-DC / 10W - 85W (Emerson)
  • LPS6225 - Shielded Power Inductors (Coilcraft)
  • LPS6235 - Shielded Power Inductors (Coilcraft)
  • LPS63 - LPS60 Series (ASTEC)
  • LPS63 - AC-DC / 10W - 85W (Emerson)
  • LPS63-M - AC-DC / 10W - 85W Medical (Emerson)
Other Datasheets by Astec America

Full PDF Text Transcription

Click to expand full text
Embedded Power for Business-Critical Continuity LPS60 Series 60 Watts Total Power: Input Voltage: # of Outputs: 60 - 80 Watts 85 - 264 Vac 120 - 300Vdc Single Rev. 05.27.08 LPS60 Series 1 of 3 Special Features • Universal input • 3" x 5" footprint • Remote sense • Built in EMI filter • Low output ripple • Adjustable output voltage • Overload protection • 110 KHz switching frequency • LPX60 enclosure kit available Safety VDE 0805/EN60950 (IEC950) 11774-3336-1255 (LC #86665) UL UL1950 E132002 CSA CSA 22.
