LPS600 - Power Resistor

Datasheet Summary

Features

  • 600 W at 85 °C bottom case temperature.
  • Wide resistance range: 0.3 Ω to 900 kΩ E24 series.
  • Non inductive.
  • Easy mounting.
  • Low thermal radiation of the case.
  • Compliant to RoHS directive 2002/95/EC.

📥 Download Datasheet

Datasheet preview – LPS600

Datasheet Details

Part number LPS600
Manufacturer Vishay Siliconix
File Size 197.81 KB
Description Power Resistor
Datasheet download datasheet LPS600 Datasheet
Additional preview pages of the LPS600 datasheet.

📁 Similar Datasheet

  • LPS60 - 60 Watts (Astec America)
  • LPS61 - LPS60 Series (ASTEC)
  • LPS61 - AC-DC / 10W - 85W (Emerson)
  • LPS62 - LPS60 Series (ASTEC)
  • LPS62 - AC-DC / 10W - 85W (Emerson)
  • LPS6225 - Shielded Power Inductors (Coilcraft)
  • LPS6235 - Shielded Power Inductors (Coilcraft)
  • LPS63 - LPS60 Series (ASTEC)
  • LPS63 - AC-DC / 10W - 85W (Emerson)
  • LPS63-M - AC-DC / 10W - 85W Medical (Emerson)
Other Datasheets by Vishay Siliconix

Full PDF Text Transcription

Click to expand full text

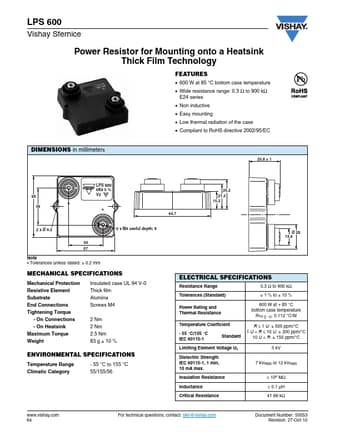

www.DataSheet.co.kr LPS 600 Vishay Sfernice Power Resistor for Mounting onto a Heatsink Thick Film Technology FEATURES • 600 W at 85 °C bottom case temperature • Wide resistance range: 0.3 Ω to 900 kΩ E24 series • Non inductive • Easy mounting • Low thermal radiation of the case • Compliant to RoHS directive 2002/95/EC DIMENSIONS in millimeters 25.8 ± 1 60 36 LPS 600 6K8 5 % V2 25.2 21.2 15.2 64.7 2 x Ø 4.2 34 57 2 x M4 useful depth: 8 Ø 20 13.6 Note • Tolerances unless stated: ± 0.2 mm MECHANICAL SPECIFICATIONS Mechanical Protection Resistive Element Substrate End Connections Tightening Torque - On Connections - On Heatsink Maximum Torque Weight Insulated case UL 94 V-0 Thick film Alumina Screws M4 2 Nm 2 Nm 2.
