LPS6235 - Shielded Power Inductors

📥 Download Datasheet

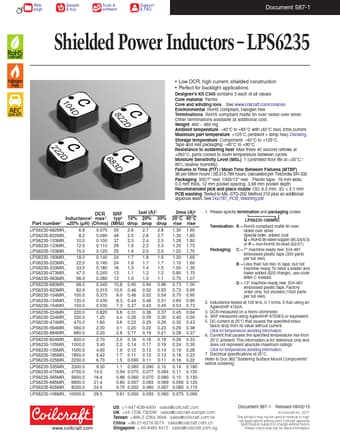

Datasheet preview – LPS6235

Datasheet Details

Part number LPS6235
Manufacturer Coilcraft
File Size 201.95 KB
Description Shielded Power Inductors
Datasheet download datasheet LPS6235 Datasheet
Additional preview pages of the LPS6235 datasheet.

📁 Similar Datasheet

  • LPS62 - LPS60 Series (ASTEC)
  • LPS62 - AC-DC / 10W - 85W (Emerson)
  • LPS60 - 60 Watts (Astec America)
  • LPS600 - Power Resistor (Vishay Siliconix)
  • LPS61 - LPS60 Series (ASTEC)
  • LPS61 - AC-DC / 10W - 85W (Emerson)
  • LPS63 - LPS60 Series (ASTEC)
  • LPS63 - AC-DC / 10W - 85W (Emerson)
  • LPS63-M - AC-DC / 10W - 85W Medical (Emerson)
  • LPS64 - LPS60 Series (ASTEC)
Other Datasheets by Coilcraft
  • LPS6225 - Shielded Power Inductors
  • LPS3008 - Shielded Power Inductors
  • LPS3010 - Shielded Power Inductors
  • LPS3015 - Shielded Power Inductors
  • LPS4012 - Shielded Power Inductors
  • LPS4018 - Shielded Power Inductors
  • LPS4414 - Shielded Power Inductors
  • LPS5010 - Shielded Power Inductors

Full PDF Text Transcription

Click to expand full text
Web page Sample & buy Tools & software Support & FAQ Document 587-1 Shielded Power Inductors – LPS6235 • Low DCR; high current; shielded construction • Perfect for backlight applications Designer’s Kit C345 contains 3 each of all values Core material Ferrite Core and winding loss See www.coilcraft.com/coreloss Environmental  RoHS compliant, halogen free Terminations  RoHS compliant matte tin over nickel over silver. Other terminations available at additional cost. Weight  460 – 480 mg Ambient temperature  –40°C to +85°C with (40°C rise) Irms current. Maximum part temperature  +125°C (ambient + temp rise). Derating. Storage temperature  Component: –40°C to +125°C.
