MT4C1004J883C Datasheet - Austin Semiconductor

MT4C1004J883C - 4 MEG x 1 DRAM FAST PAGE MODE

The MT4C1004J is a randomly accessed solid-state memory containing 4,194,304 bits organized in a x1 configuration.

During READ or WRITE cycles, each bit is uniquely addressed through the 22 address bits which are entered 11 bits (A0 -A10) at a time.

/R/A/S is used to latch the first 11 bits and /C/A

MT4C1004J883C Features

* Industry standard x1 pinout, timing, functions and packages

* High-performance, CMOS silicon-gate process

* Single +5V ± 10% power supply

* Low-power, 2.5mW standby; 300mW active, typical

* All inputs, outputs and clocks are fully TTL and CMOS compatible

MT4C1004J883C_AustinSemiconductor.pdf

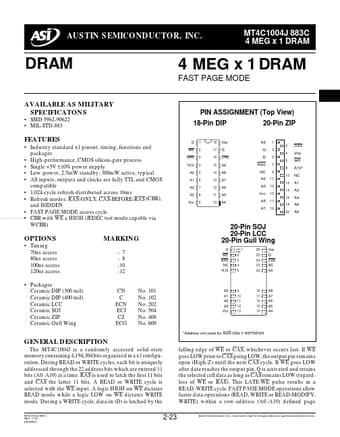

Preview of MT4C1004J883C PDF
MT4C1004J883C Datasheet Preview Page 2 MT4C1004J883C Datasheet Preview Page 3

Datasheet Details

Part number:

MT4C1004J883C

Manufacturer:

Austin Semiconductor

File Size:

146.79 KB

Description:

4 meg x 1 dram fast page mode.
