HCPL3020 Datasheet, Optocoupler, Avago

HCPL3020 Features

  • Optocoupler
  •   0.4 A maximum peak output current
  •   0.2 A minimum peak output current
  •   High speed response: 0.7 µs maximum propagation delay over temperature range

PDF File Details

Part number:

HCPL3020

Manufacturer:

Avago

File Size:

202.16kb

Download:

📄 Datasheet

Description:

(hcpl3020 / hcpl0302) 0.4 amp output current igbt gate drive optocoupler. The HCPL-3020 and HCPL-0302 consist of a GaAsP LED optically coupled to an integrated circuit with a power output stage. These optoco

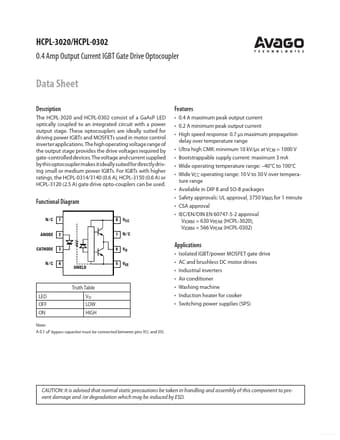

Datasheet Preview: HCPL3020 📥 Download PDF (202.16kb)
Page 2 of HCPL3020 Page 3 of HCPL3020

HCPL3020 Application

  • Applications The high operating voltage range of the output stage provides the drive voltages required by gate-controlled devices. The voltage and
