HLMP-4015 Datasheet, Lamps, Avago

HLMP-4015 Features

• Lamps
• Two color operation
• Three leads with one common cathode
• Option of straight or spread leads configuration Selection Guide Package T-1 3/4 Rectangula

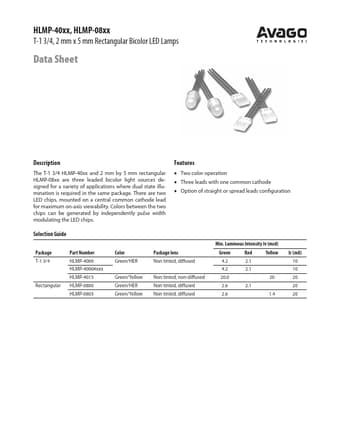

PDF File Details

Part number:

HLMP-4015

Manufacturer:

Avago

File Size:

290.51kb

Download:

📄 Datasheet

Description:

2 mm x 5 mm rectangular bicolor led lamps. The T-1 3/4 HLMP-40xx and 2 mm by 5 mm rectangular HLMP-08xx are three leaded bicolor light sources designed for a variety of applica

HLMP-4015 Application

• Applications where dual state illumination is required in the same package. There are two LED chips, mounted on a central common cathode lead for ma
