CCD595 Datasheet, Sensor, BAE Systems

CCD595 Features

• Sensor
• 9216 x 9216 Full Frame CCD Array
• 8.75 m x 8.75 m Pixels
• 80.64mm x 80.64mm Image Area
• 100% Fill Factor
• Non Multi-Pinned Phase (MPP) Op

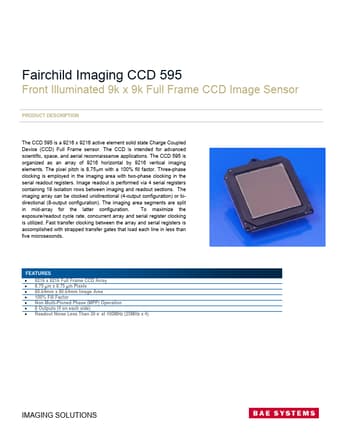

PDF File Details

Part number:

CCD595

Manufacturer:

BAE Systems

File Size:

294.89kb

Download:

📄 Datasheet

Description:

Front illuminated 9k x 9k full frame ccd image sensor. The CCD 595 is a 9216 x 9216 active element solid state Charge Coupled Device (CCD) Full Frame sensor. The CCD is intended for advanc

CCD595 Application

• Applications The CCD 595 is organized as an array of 9216 horizontal by 9216 vertical imaging elements. The pixel pitch is 8.75m with a 100% fill
