CCD10121

12K x 128 Element Delay and Integration CCD

CCD10121 Features

* 12,288 pixels per line

* Number of TDI stages electronically selectable: {4, 8, 16, 32, 64, 96, 128}

* Bi-directional TDI (shift up or down)

* 8 outputs

* each capable of 20MHz data rate

* 160MHz total data rate

* 100% fill factor

* 8

CCD10121 General Description

The CCD 10121 is a 12,288 pixel x 128 line, high speed TDI sensor. The active imaging area is organized as 12,288 vertical columns and 128 horizontal TDI rows. The array is set up for bi-directional operation. There are identical output registers and amplifiers on both the top and the bottom of the .

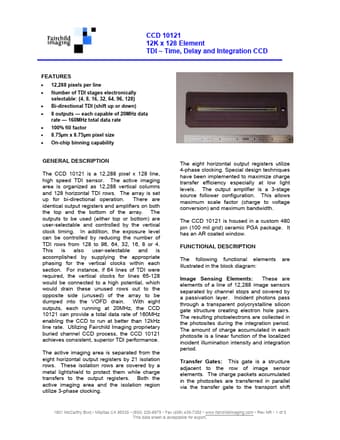

CCD10121 Datasheet (161.33 KB)
