CCD5061

6K x 128 Element / TDI-Time / Delay and Integration Sensor

Fairchild

CCD5061 Features

* 6144 pixels per line 128 lines of integration 8.75µm x 8.75µm pixel size # of TDI stages selectable from 128, 64, 32, 16, 8, 4 Bi-directional TDI line shifting (shift up or down) 4 outputs

* each capable of 20MHz

CCD5061 General Description

The CCD5061 is a 6144 pixel x 128 line, high speed TDI sensor. The active imaging area is organized as 6144 vertical columns and 128 horizontal TDI rows. The array is set up for bi-directional operation. There are identical output registers and amplifiers on both the top and the bottom of the array..

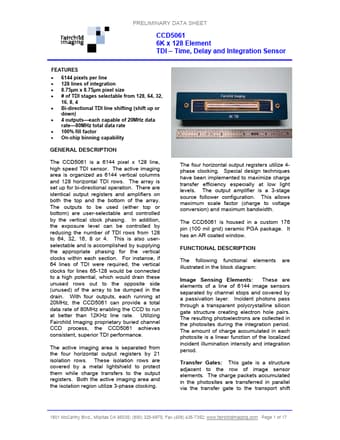

CCD5061 Datasheet (947.44 KB)

CCD5061 Datasheet Preview — Preview of CCD5061 PDF

Datasheet Details

Part number:

CCD5061

Manufacturer:

Fairchild

File Size:

947.44 KB

Description:

6k x 128 element / tdi-time / delay and integration sensor.
