CCD525

Time Delay Integration Line Scan Sensor

CCD525 Features

* 2048 Active Pixels Per Line 96 TDI Lines 13µm x13 µm Pixels 4 High Speed Output Ports TDI Stages Selectable Between 96, 64, 48, 32, or 24 100 MHz Data Rate with 4 Outputs Operating at 25 MHz 42 kHz Line Rate 2000X Antiblooming Protection High Sensitivity RoHS Compliant GENERAL DESCRIPTION The CCD525

CCD525 General Description

The CCD525 is a Time Delay Integration (TDI) sensor designed for a wide range of imaging applications requiring high speed operation combined with high sensitivity. The sensor is capable of producing a total data rate of 100 MHz (line rate > 42 kHz). The CCD has a total imaging area of 2048 contiguo.

CCD525 Datasheet (190.61 KB)

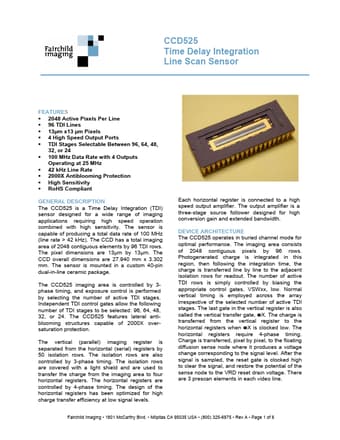

Preview of CCD525 PDF

Datasheet Details

Part number:

CCD525

Manufacturer:

Fairchild Imaging

File Size:

190.61 KB

Description:

Time delay integration line scan sensor.
