BT160140

Graphic LCD Modules

BT160140 Features

* N Single 5V power supply N High contrast and wide viewing angle N Built-in Controller SED 1335 (1)

* or compatible N Text and graphic screen can be combined N Driver HD 66204 (2), HD 66205 (2) N Built in RAM: 32 k N MPU-BUS: INTEL (DEFAULT) N Suitable for case OKW Datec Control N Temperature

BT160140 General Description

The BT 160140 is a supertwist dot matrix LCD module with graphics capability. The module consists of a newly developed 240 degree twist STN type LCD with high contrast, wide viewing angle, CMOS LCD driver, and controller. The control LSI SED 1335 has various graphics and text capabilities and is dir.

BT160140 Datasheet (55.54 KB)

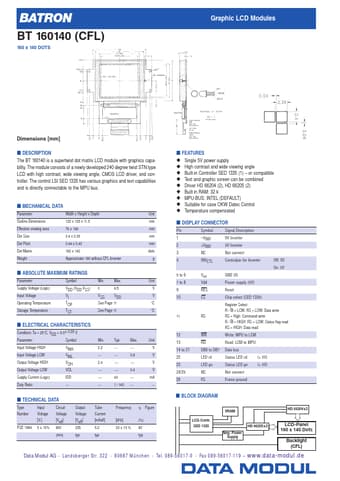

Preview of BT160140 PDF

Datasheet Details

Part number:

BT160140

Manufacturer:

BATRON

File Size:

55.54 KB

Description:

Graphic lcd modules.
