BT168G SCR

BT168G Description

BT168G SCR 21 August 2018 Product data sheet 1.General .
Planar passivated Silicon Controlled Rectifier with sensitive gate in a SOT54 (TO-92) plastic package.

BT168G Features

* Guaranteed minimum gate trigger current limit
* Enhanced voltage capability
* Planar passivated for voltage ruggedness and reliability
* Sensitive gate

BT168G Applications

* Ground Fault Interrupters (GFI)
* Leakage Current Circuit Breakers (LCCB)
* Residual Current Devices (RCD) 4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditions VRRM repetitive peak reverse voltage IT(AV) average on-state current half s

📥 Download Datasheet

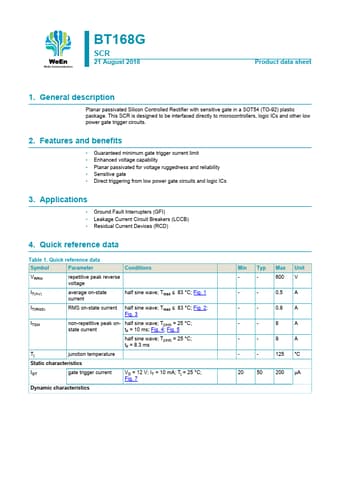

Preview of BT168G PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BT168G
Manufacturer
WeEn
File Size
257.78 KB
Datasheet
BT168G-WeEn.pdf
Description
SCR
