BT168E SCR

BT168E Description

BT168E SCR 6 October 2016 Product data sheet 1.General .
Planar passivated Silicon Controlled Rectifier with sensitive gate in a SOT54 (TO-92) plastic package.

BT168E Features

* Guaranteed minimum gate trigger current limit
* Planar passivated for voltage ruggedness and reliability
* Sensitive gate

BT168E Applications

* Ground Fault Interrupters (GFI)
* Leakage Current Circuit Breakers (LCCB)
* Residual Current Devices (RCD) 4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditions VDRM repetitive peak offstate voltage VRRM repetitive peak reverse voltage

📥 Download Datasheet

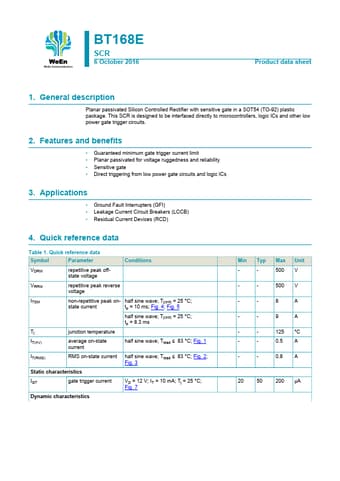

Preview of BT168E PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BT168E
Manufacturer
WeEn
File Size
249.75 KB
Datasheet
BT168E-WeEn.pdf
Description
SCR
