BT169G Datasheet - WeEn

BT169G, SCR

BT169G SCR 5 September 2018 Product data sheet 1.General .
Planar passivated Silicon Controlled Rectifier with sensitive gate in a SOT54 (TO-92) plastic package.

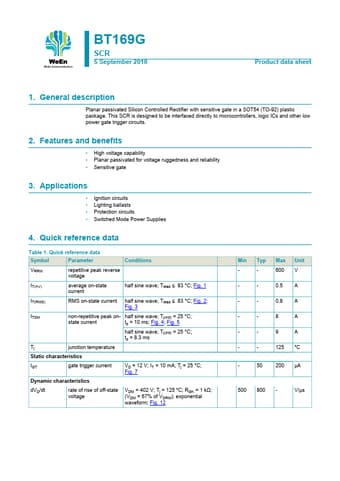

datasheet Preview Page 1 from Datasheet4u.com

BT169G-WeEn.pdf

BT169G Datasheet Preview — Preview of BT169G PDF

Datasheet Details

Part number:

BT169G

Manufacturer:

WeEn

File Size:

258.08 KB

Description:

SCR

Features

* High voltage capability
* Planar passivated for voltage ruggedness and reliability

Applications

* Ignition circuits
* Lighting ballasts
* Protection circuits
* Switched Mode Power Supplies 4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditions VRRM repetitive peak reverse voltage IT(AV) average on-state current half sine wave
