BT162-600 Datasheet - Digitron

BT162-600 SILICON BIDIRECTIONAL THYRISTORS

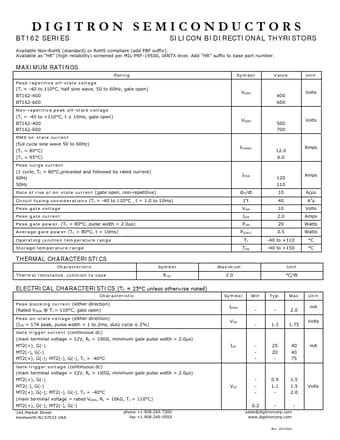

DIGITRON SEMICONDUCTORS BT162 SERIES SILICON BIDIRECTIONAL THYRISTORS Available Non-RoHS (standard) or RoHS compliant (add PBF suffix). Available as “HR” (high reliability) screened per MIL-PRF-19500, JANTX level. Add “HR” suffix to base part number. MAXIMUM RATINGS Rating Peak repetitive off-state voltage (TJ = -40 to 110°C, half sine wave, 50 to 60Hz, gate open) BT162-400 BT162-600 Non-repetitive peak off-state voltage (TJ = -40 to +110°C, t ≤ 10ms, gate open) BT162-400 BT162-600 RMS on-state.

BT162-600 Datasheet (639.50 KB)
