AZ431, ADJUSTABLE PRECISION SHUNT REGULATORS

Data Sheet ADJUSTABLE PRECISION SHUNT REGULATORS General .
The AZ431 series ICs are three-terminal adjustable shunt regulators with guaranteed thermal stability over a full operation range.

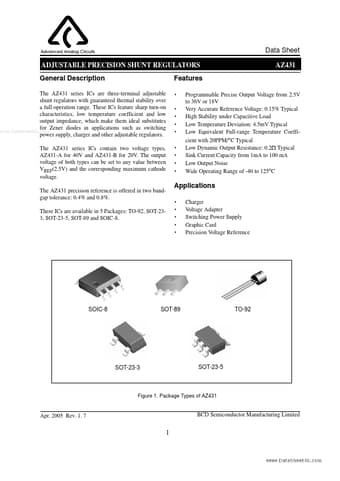

datasheet Preview Page 1 from Datasheet4u.com

AZ431_BCDSemiconductor.pdf

AZ431 Datasheet Preview — Preview of AZ431 PDF

Datasheet Details

Part number:

AZ431

Manufacturer:

BCD Semiconductor

File Size:

233.03 KB

Description:

ADJUSTABLE PRECISION SHUNT REGULATORS

Features

* Programmable Precise Output Voltage from 2.5V to 36V or 18V Very Accurate Reference Voltage: 0.15% Typical High Stability under Capacitive Load Low Temperature Deviation: 4.5mV Typical Low Equivalent Full-range Temperature Coefficient with 20PPM/

Applications

* such as switching www. DataSheet4U. com power supply, charger and other adjustable regulators. The AZ431 series ICs contain two voltage types, AZ431-A for 40V and AZ431-B for 20V. The output voltage of both types can be set to any value between VREF(2.5V) and the corresponding maximum cathode voltage.
