AZ4052 Datasheet, Multiplexer/demultiplexer, BCD Semiconductor

AZ4052 Features

  • Multiplexer/demultiplexer
  • Wide Operation Voltage: ±5.0V or 10V
  • Low On-resistance: - 55Ω (Typ.) at VCC-VEE=5V - 40Ω ( Typ.) at VCC-VEE=10V
  • Ultra Low THD+N: 0.003% @ 10V, 0.008% @ 5.0

PDF File Details

Part number:

AZ4052

Manufacturer:

BCD Semiconductor

File Size:

467.74kb

Download:

📄 Datasheet

Description:

Dual 4-channel analog multiplexer/demultiplexer. The AZ4052 is high-speed si-gate CMOS device. The AZ4052 is dual 4-channel analog multiplexers or demultiplexers with common select l

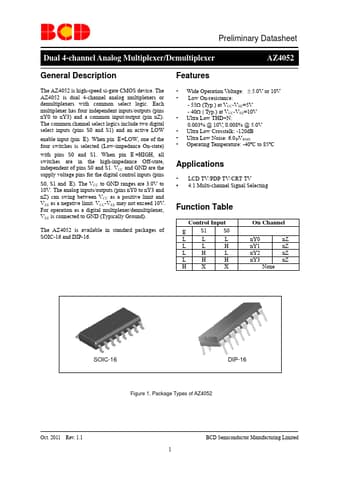

Datasheet Preview: AZ4052 📥 Download PDF (467.74kb)
Page 2 of AZ4052 Page 3 of AZ4052

AZ4052 Application

  • Applications
  • LCD TV/PDP TV/CRT TV
  • 4:1 Multi-channel Signal Selecting Function Table Control Input ___ E S1 S0 LL L LL H
