AZ432, LOW VOLTAGE (1.25V) ADJUSTABLE PRECISION SHUNT REGULATOR

NOT RECOMMENDED FOR NEW DESIGN NO ALTERNATE PART AZ432 LOW VOLTAGE (1.25V) ADJUSTABLE PRECISION SHUNT REGULATOR .
The AZ432 series ICs are low voltage three-terminal adjustable regulators with guaranteed thermal stability over a full operation range.

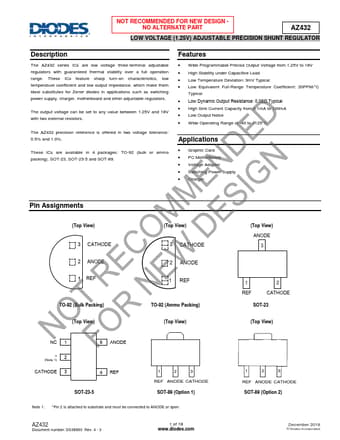

datasheet Preview Page 1 from Datasheet4u.com

AZ432-Diodes.pdf

AZ432 Datasheet Preview — Preview of AZ432 PDF

Datasheet Details

Part number:

AZ432

Manufacturer:

DIODES ↗

File Size:

487.08 KB

Description:

LOW VOLTAGE (1.25V) ADJUSTABLE PRECISION SHUNT REGULATOR

Features

* Wide Programmable Precise Output Voltage from 1.25V to 18V
* High Stability under Capacitive Load
* Low Temperature Deviation: 3mV Typical
* Low Equivalent Full-Range Temperature Coefficient: 20PPM/°C Typical
* Low Dynamic Output Resistance: 0.05Ω Typical
* High Sink Curren

Applications

* such as switching power supply, charger, motherboard and other adjustable regulators. The output voltage can be set to any value between 1.25V and 18V with two external resistors. The AZ432 precision reference is offered in two voltage tolerance: 0.5% and 1.0%. These ICs are available in 4 packages:
