AH477

SINGLE PHASE HALL EFFECT LATCH

AH477 Features

* On-Chip Hall Sensor Operating Voltage: 4V to 20V H-Bridge Output Drivers for Single Coil Internal Bandgap Regulator for Temperature Compensation Low Output Switching Current Noise -20oC to 85oC Operating Temperature Low Profile TO-94 (SIP-4L) Package E

AH477 General Description

The AH477 is an integrated Hall sensor with output driver designed for electronic commutation of brushless DC motor applications. The device includes an on-chip Hall sensor for magnetic sensing, an amplifier that amplifies the Hall voltage, a comparator to provide switching hysteresis for noise reje.

AH477 Datasheet (79.50 KB)

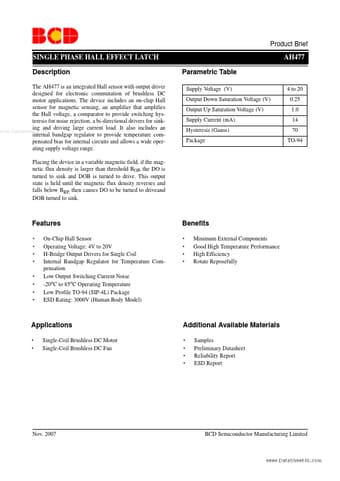

Preview of AH477 PDF

Datasheet Details

Part number:

AH477

Manufacturer:

BCD

File Size:

79.50 KB

Description:

Single phase hall effect latch.
