AH401 High Voltage Hall Effect Switch Sensor

AH401 High Voltage Hall Effect Switch Sensor Introduction Vinbelltech Co. Ltd AH401, designed with Bipolar technology, includes on-chip Hall element voltage generator, a voltage regulator for operation with supply voltages of 4.5 to 60V, reverse voltage protection, temperature compensation circuitry, small-signal amplifier, Schmitt trigger and an open-collector output. The sensor is designed to respond to North and South poles. While the magnetic flux density(B) is larger than operate point .

AH401 Features

* Miniature construction

* High sensitivity of +/-55 Gauss (typ.)

* Wide voltage range of 4.5 Vdc to 60 Vdc

* Temperature range of -40 °C to 150 °C

* Open Collector Output Applications

* BLDC Motor Commutation

* Flow sensor

* Position sensor

* Speed sensor

AH401-Vinbelltech.pdf

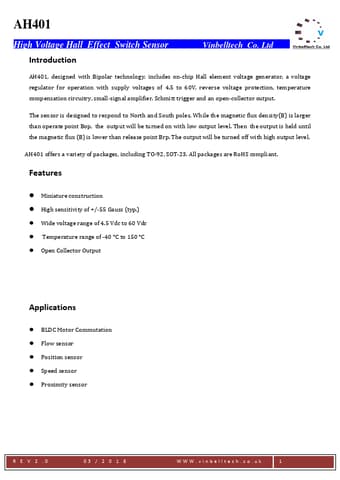

AH401 Datasheet Preview — Preview of AH401 PDF
