AH423 Datasheet - Alfa Electronics

AH423 High-voltage high-sensitivity single-pole Hall switch

AH423 High voltage resistance and high sensitivity unipolar Hall chip 1. Product Introduction AH423 is a unipolar Hall switch chip with high voltage resistance and high sensitivity, which is designed by bipolar semiconductor technology. The chip is composed of voltage stabilizing unit, Hall voltage generator, differential amplifier circuit, temperature compensation circuit and Open collector output circuit. Working mode: input Magnetic flux density and output digital voltage signal. Provide TO9.

AH423-AlfaElectronics.pdf

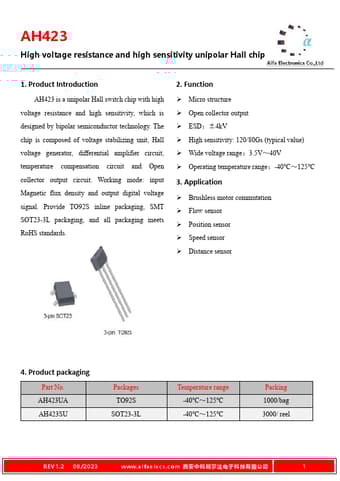

Preview of AH423 PDF
AH423 Datasheet Preview Page 2 AH423 Datasheet Preview Page 3

Datasheet Details

Part number:

AH423

Manufacturer:

Alfa Electronics

File Size:

443.08 KB

Description:

High-voltage high-sensitivity single-pole hall switch.
