AH421

High Sensitive Digital-Unipolar Hall Effect Sensor

AH421 Features

* Miniature construction

* High sensitivity of 60/40 Gauss (typ.)

* Wide voltage range of 3.8 Vdc to 40 Vdc

* Temperature range of -40 °C to 125 °C

* Highest ESD performance up to ±4 kV

* Open Collector Output Applications

* BLDC Motor Commutation

* Flow sensor

AH421 General Description

Name VDD GND Vout Pin number 1 2 3 Description Power supply Ground Output Vinbelltech Limited Application example: VDD =5V A positive magnetic field is defined as a South pole near the marked side of the package. OUT=Low OUT=High OUT=Low OUT=High TO92S (AH421) TO92S (AH421) SOT23(AH421) .

AH421 Datasheet (656.36 KB)

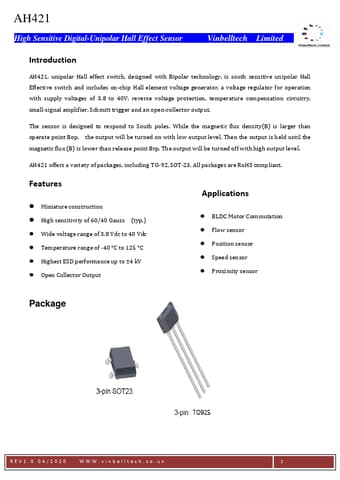

Preview of AH421 PDF
