AH41

BIPOLAR HALL-EFFECT POSITION SENSORS

BCD

AH41 Features

* On-chip Hall Sensor

* Wide Operating Voltage Range: 4V to 24V

* Internal Bandgap Regulator for Temperature Compensation

* Maximum Output Sink Current: 50mA

* Low Profile TO-92S-3

* Operating Temperature: -40˚C to 150˚C

* ESD Rating: 2000V (Hu

AH41 General Description

The AH41 is an integrated Hall-effect latched sensor designed for electronic commutation of brushless DC motor applications. The device includes an on-chip Hall voltage generator for magnetic sensing, a comparator that amplifiers the Hall voltage, and a Schmitt to provide switching hysteresis for no.

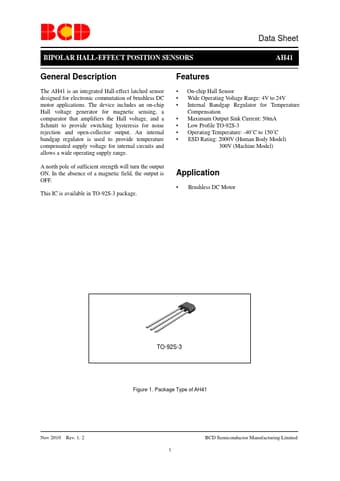

AH41 Datasheet (289.93 KB)

AH41 Datasheet Preview — Preview of AH41 PDF

Datasheet Details

Part number:

AH41

Manufacturer:

BCD

File Size:

289.93 KB

Description:

Bipolar hall-effect position sensors.
