AH4 Datasheet, Amplifier, WJ Communications

AH4 Features

  • Amplifier
  • 250-6000 MHz
  • +41 dBm Output IP3
  • 2.7 dB Noise Figure
  • 13.5 dB Gain
  • +21 dBm P1dB
  • MTBF >100 Years
  • 3 X 3 LGA SMT Package

PDF File Details

Part number:

AH4

Manufacturer:

WJ Communications

File Size:

98.97kb

Download:

📄 Datasheet

Description:

High dynamic range amplifier. The AH4 is a high dynamic range amplifier packaged in a Land Grid Array (LGA) surface mount package for applications thru 6 GHz. The

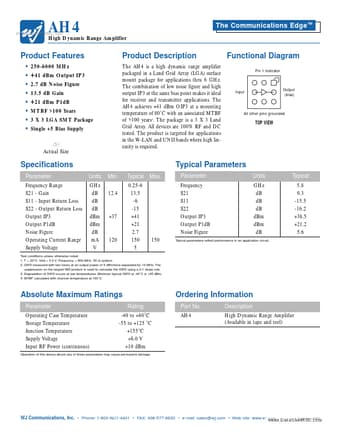

Datasheet Preview: AH4 📥 Download PDF (98.97kb)
Page 2 of AH4 Page 3 of AH4

AH4 Application

  • Applications thru 6 GHz. The combination of low noise figure and high output IP3 at the same bias point makes it ideal for receiver and transmitter
