BM00801 Datasheet - BEL

BM00801 - INTEGRATED CONNECTOR MODULES

www.DataSheet4U.com INTEGRATED CONNECTOR MODULES 10/100Base-TX belMag™ with LEDs Single port shielded RJ-45 connector with integrated 10/100 magnetics Compatible with a variety of 10/100 transceiver ICs Operating temperature 0° to +70° C Storage temperature -40° to +85° C BM00801 Complies with IEEE standards and all 10/100 Ethernet specifications including 350µH with 8mA DC bias Integrated design conserves valuable board space Minimum interwinding breakdown voltage of 1500

BM00801_BEL.pdf

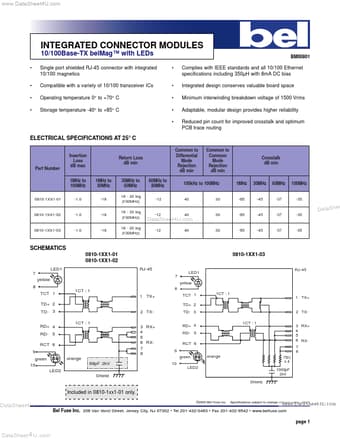

Preview of BM00801 PDF
BM00801 Datasheet Preview Page 2

Datasheet Details

Part number:

BM00801

Manufacturer:

BEL

File Size:

283.34 KB

Description:

Integrated connector modules.
