BM0102 2.5W AUDIO CLASS-D+

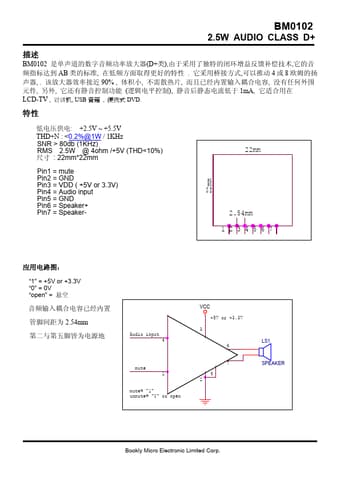

BM0102 2.5W AUDIO CLASS D+ BM0102 (D+),, AB , . , 4 8 , . 90% , , , , , , (), 1mA, LCD-TV , , USB , DVD. : +2.5V ~ +5.5V THD+N : <0.2%@1W / 1KHz SNR > 80db (1KHz) RMS 2.5W @ 4ohm /+5V (THD<10%) : 22mm 22mm Pin1 = mute Pin2 = GND Pin3 = VDD ( +5V or 3.3V) Pin4 = Audio input Pin5 = GND Pin6 = Speaker+ Pin7 = Speaker- 22mm 22mm 2.54mm 1234567 ： “1” = +5V or +3.3V “0” = 0V “open” = 2.54mm Audio input 4 mute 1 mute= "1" unmute= "0" or open VCC +5V or +3.3V 3 6 7 5 2 LS1.
