BM0210

10W x 2 CLASS D+ AUDIO

BM0210 Features

* Wide VDD input range of +9V ~ +26V Reduce system cost with no heat sink and save power Class D

BM0210 General Description

The BM0210 is two channel audio amplifier module, using unique close loop and feed forward compensation techniques (CLFFC

*IP belong BM) to achieve better THD+N from 20Hz to 20KHz. It can deliver output power up to 13W (RMS) @4ohm load. The module has mute function with logic high or low cont.

BM0210 Datasheet (129.99 KB)

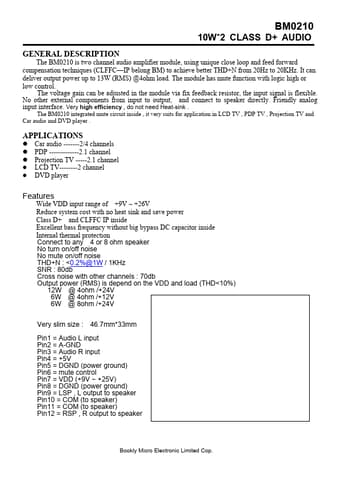

Preview of BM0210 PDF

Datasheet Details

Part number:

BM0210

Manufacturer:

Bookly

File Size:

129.99 KB

Description:

10w x 2 class d+ audio.
