BM0120

20W AUDIO CLASS D+

BM0120 Features

* Wide VDD input range of +9V ~ +26V Reduce system cost with no heat sink and save power Class D+ and CLFFC IP inside Excellent bass frequency without big bypass DC capacitor inside Internal thermal protection Connect to any passive 4 or 8 ohm speaker No mute on/off noise THD+N :

BM0120 General Description

The BM0120 is one channel audio amplifier module, using unique close loop and feed forward compensation techniques (CLFFC

*IP belong BM) to achieve better THD+N from 20Hz to 20KHz. The module can deliver output power up to 35W (RMS) @4ohm load. The module has mute function with logic high or .

BM0120 Datasheet (239.24 KB)

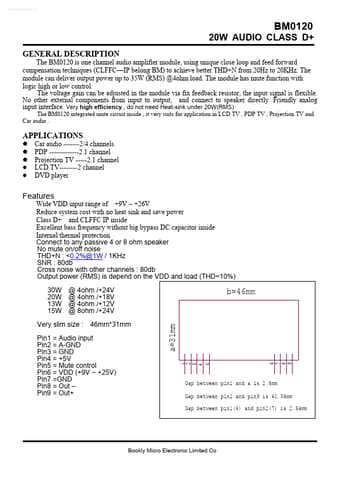

Preview of BM0120 PDF

Datasheet Details

Part number:

BM0120

Manufacturer:

Bookly

File Size:

239.24 KB

Description:

20w audio class d+.
