BM03N05 NPN TRANSISTOR

BM03N05 Description

NPN NPN LOW Vce(sat) TRANSISTOR R BM03N05 MAIN CHARACTERISTICS Package IC VCEO PC (SOT-89) 1 RCE(sat) 3A 50V 550mW 130 mΩ 1．。 * * .

BM03N05 Features

* Epitaxial silicon
* ，
* Low VCE(sat) ，high current
* BM03P05
* Complementary to BM03P05
* （RoHS）
* RoHS product ORDER MESSAGE - Halogen-Tube NA Order codes - - Halogen Free-Tube Halogen-Reel - Halogen Free-Reel Marking N/A SOT-89-NB-E N/A 3

BM03N05 Applications

* Switching and muting
* Battery charger

📥 Download Datasheet

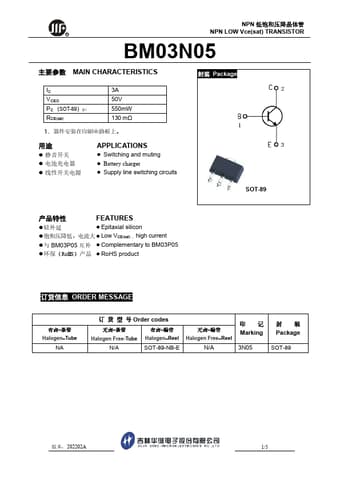

Preview of BM03N05 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BM03N05
Manufacturer
JILIN SINO
File Size
360.97 KB
Datasheet
BM03N05-JILINSINO.pdf
Description
NPN TRANSISTOR
