BM05P06A PNP TRANSISTOR

BM05P06A Description

PNP PNP LOW Vce(sat) TRANSISTOR R BM05P06A MAIN CHARACTERISTICS Package IC VCEO PC（a）(SOT-89) PC（b）(SOT-223) -5A -60V 1.5W 3W * * .

BM05P06A Features

* Epitaxial silicon
* ，
* Low VCE(sat) ，high current
* BM05N06A
* Complementary to BM05N06A
* （RoHS）
* RoHS product SOT-223 SOT-89 ORDER MESSAGE - Halogen-Tube NA NA Order codes - - Halogen Free-Tube Halogen-Reel N/A N/A N/A N/A - Halogen Fre

BM05P06A Applications

* Switching and muting
* Battery charger
* Supply line switching circuits

📥 Download Datasheet

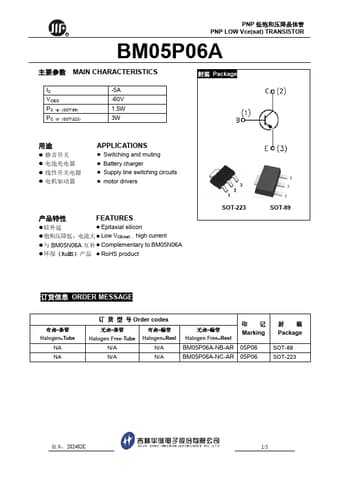

Preview of BM05P06A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BM05P06A
Manufacturer
JILIN SINO
File Size
380.81 KB
Datasheet
BM05P06A-JILINSINO.pdf
Description
PNP TRANSISTOR
