BL8080 HIGH INTEGRATED PWM CONTROLLER

1 OB Output of the drive, connects this pin to the base of the external power transistor. 2 OE Connects this pin to the emmiter of the external power transistor. 3 VCC The power supply. This pin provides power for the internal circuitry and driver. 4 FB Feedback. Need put a capacitor between th.

BL8080 GENERAL DISCRIPTION The BL8080 is a PWM controller designed to drive high voltage NPN transistors. It integrates an oscillator, cycle-by-cycle current limit, thermal protection and over voltage protection, great reducing the number of external components and system level cost. Compared to conventional controller, BL8080 has a significantly smaller startup current of less than 20uA, which allows large startup resistor that enabes further power saving. The frequency can be adjusted from an.

BL8080 Features

* Low start up current

* Easy programmable frequency

* Compact SOT23-6 package

* Universal voltage range: 85VAC -264VAC

* Thermal shutdown

* Cycle by cycle current limit

* Slope current drive

* Low standby power consumption APPLICATIONS

* Cell phone charger

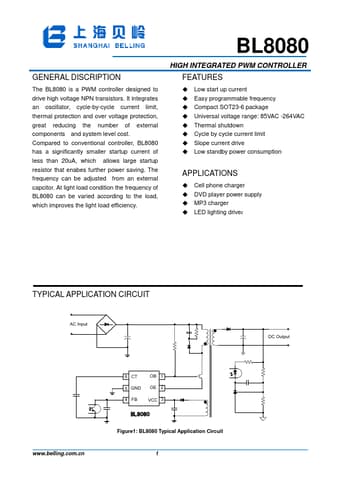

BL8080 Datasheet (307.50 KB)

BL8080 Datasheet Preview — Preview of BL8080 PDF

Datasheet Details

Part number:

BL8080

Manufacturer:

BELLING

File Size:

307.50 KB

Description:

High integrated pwm controller.
