BL8088, 8-Channel WLED Linear Driver

.
The BL8088 is a CMOS based White/Blue LED driver with stand-alone capability.

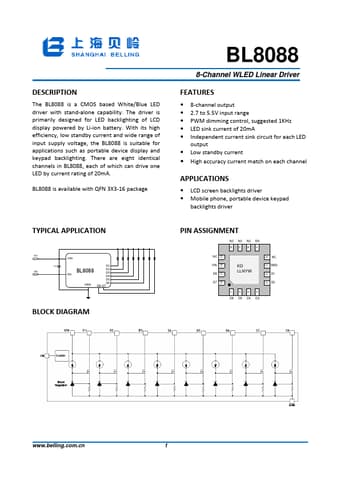

datasheet Preview Page 1 from Datasheet4u.com

BL8088-BELLING.pdf

BL8088 Datasheet Preview — Preview of BL8088 PDF

Datasheet Details

Part number:

BL8088

Manufacturer:

BELLING

File Size:

372.36 KB

Description:

8-Channel WLED Linear Driver

Features

* 8-channel output
* 2.7 to 5.5V input range
* PWM dimming control, suggested 1KHz
* LED sink current of 20mA
* Independent current sink circuit for each LED output
* Low standby current

Applications

* such as portable device display and keypad backlighting. There are eight identical channels in BL8088, each of which can drive one LED by current rating of 20mA. BL8088 is available with QFN 3X3-16 package TYPICAL APPLICATION Vin VIN 1uF D1 EN BLC8109888 EN D2 D3 D4 D5 GND D6 D8 D7 BLOCK D
