DT5015 SDSL Transformer

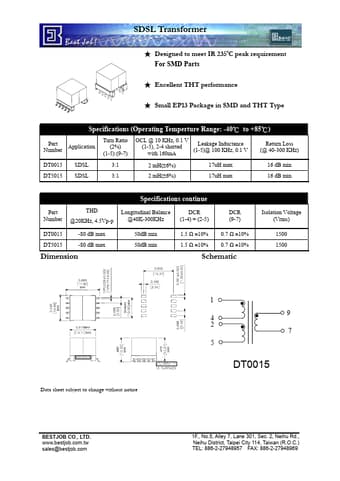

SDSL Transformer ★ Designed to meet IR 2350C peak requirement For SMD Parts ★ Excellent THT performance ★ Small EP13 Package in SMD and THT Type Specifications (Operating Temperture Range: -40℃ to +85℃) Part Number Application Turn Ratio (2%) (1-5):(9-7) OCL @ 10 KHz, 0.1 V (1-5), 2-4 shorted with 160mA Leakage Inductance (1-5)@ 100 KHz, 0.1 V Return Loss (@ 40-300 KHz) DT0015 DT5015 SDSL SDSL 3:1 3:1 2 mH(±6%) 2 mH(±6%) 17uH max 17uH max 16 dB min 16 dB min Specifications continu.

DT5015 Datasheet (200.94 KB)
