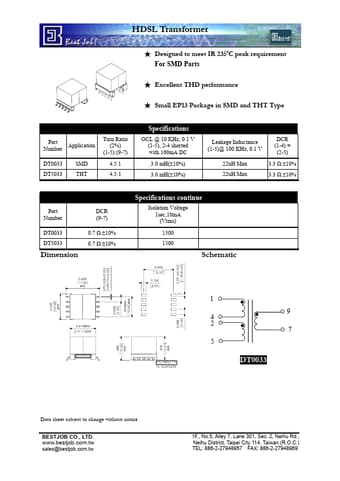

DT5033 HDSL Transformer

HDSL Transformer ★ Designed to meet IR 2350C peak requirement For SMD Parts ★ Excellent THD performance ★ Small EP13 Package in SMD and THT Type Part Number Application DT0033 DT5033 SMD THT Turn Ratio (2%) (1-5):(9-7) 4.5:1 4.5:1 Specifications OCL @ 10 KHz, 0.1 V (1-5), 2-4 shorted with 160mA DC 3.0 mH(±10%) 3.0 mH(±10%) Leakage Inductance (1-5)@ 100 KHz, 0.1 V DCR (1-4) = (2-5) 22uH Max 22uH Max 3.3 Ω ±10% 3.3 Ω ±10% Part Number DCR (9-7) DT0033 DT5033 Dimension 0.7 Ω ±10% 0.7 .
