DT5025 HDSL Transformer

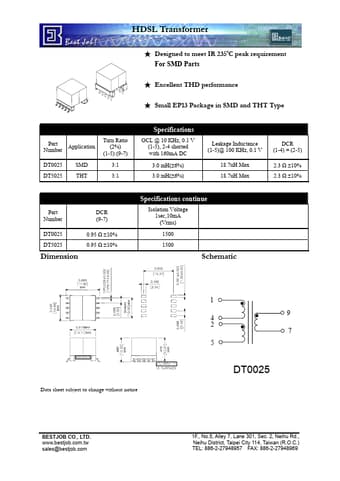

HDSL Transformer ★ Designed to meet IR 2350C peak requirement For SMD Parts ★ Excellent THD performance ★ Small EP13 Package in SMD and THT Type Part Number Application DT0025 DT5025 SMD THT Turn Ratio (2%) (1-5):(9-7) 3:1 3:1 Specifications OCL @ 10 KHz, 0.1 V (1-5), 2-4 shorted with 160mA DC 3.0 mH(±6%) 3.0 mH(±6%) Leakage Inductance (1-5)@ 100 KHz, 0.1 V 18.7uH Max 18.7uH Max DCR (1-4) = (2-5) 2.3 Ω ±10% 2.3 Ω ±10% Part Number DCR (9-7) DT0025 DT5025 Dimension 0.95 Ω ±10% 0.95 Ω .
