Part number:
2SA1320
Manufacturer:
BLUE ROCKET ELECTRONICS
File Size:
950.27 KB
Description:
Silicon pnp transistor.

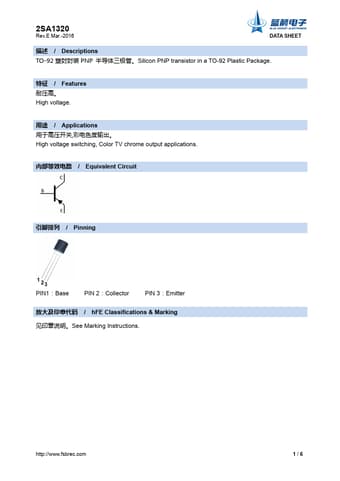

* 。 High voltage. / Applications ,。 High voltage switching, Color TV chrome output applications. / Equivalent Circuit / Pinning 1 23 PIN1：Base PIN 2：Collector PIN 3：Emitter / hFE Classifications & Marking 。See Marking Instructions. http://www.fsbrec.com 1/6 2SA1320 Rev.E Mar.-2016 /
