2SA934 Silicon PNP transistor

2SA934 Description

2SA934 Rev.E Mar.-2016 DATA SHEET / .
TO-92LM PNP 。Silicon PNP transistor in a TO-92LM Plastic Package.

2SA934 Applications

* 1～2W 。 1～2W output circuits. / Equivalent Circuit / Pinning 123 PIN1：Base PIN 2：Collector PIN 3：Emitter / hFE Classifications & Marking hFE Classifications Symbol hFE Range P 82~180 Q 120~270 R 180~390 http://www. fsbrec. com 1/5 2SA934 Rev. E Mar. -2016 / Absolute Maximum Ratings(Ta

📥 Download Datasheet

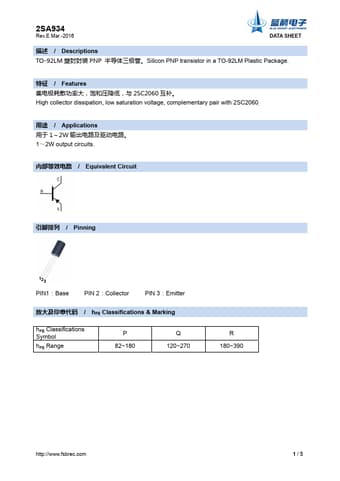

Preview of 2SA934 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SA934
Manufacturer
BLUE ROCKET ELECTRONICS
File Size
609.75 KB
Datasheet
2SA934-BLUEROCKETELECTRONICS.pdf
Description
Silicon PNP transistor
