2SA937 Silicon PNP transistor

2SA937 Description

2SA937 Rev.E Mar.-2016 DATA SHEET / .
TO-92 PNP 。Silicon PNP transistor in a TO-92 Plastic Package.

2SA937 Applications

* ,,,,,。 General small-signal amplifier, preamplifiers, equalizer amplifiers, RF amplifiers and oscillators, medium-speed switching. / Equivalent Circuit / Pinning 1 23 PIN1：Base PIN 2：Collector PIN 3：Emitter / hFE Classifications & Marking hFE Classifications Symbol hFE Range Q 120~270 R

📥 Download Datasheet

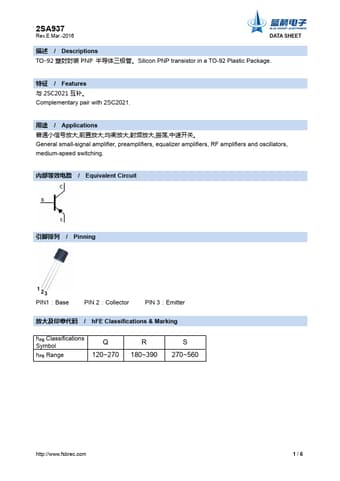

Preview of 2SA937 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SA937
Manufacturer
BLUE ROCKET ELECTRONICS
File Size
1.04 MB
Datasheet
2SA937-BLUEROCKETELECTRONICS.pdf
Description
Silicon PNP transistor
