2SA952

Silicon PNP transistor

2SA952 Features

* ,hFE ,VCE(sat)。 High total dissipation, high hFE and low VCE(sat). / Applications 、。 Output stage of portable radio and cassette type tape recorder, general purpose applications. / Equivalent Circuit / Pinning 1 23 PIN1:Base PIN 2:Collector PIN 3:Emitter / hFE Classifications & Marking

2SA952 Datasheet (1.14 MB)

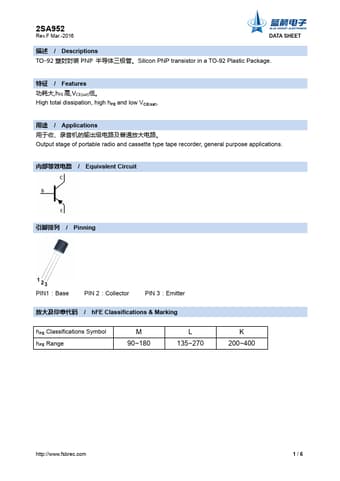

Preview of 2SA952 PDF

Datasheet Details

Part number:

2SA952

Manufacturer:

BLUE ROCKET ELECTRONICS

File Size:

1.14 MB

Description:

Silicon pnp transistor.
