Part number:
2SB561
Manufacturer:
BLUE ROCKET ELECTRONICS
File Size:
784.19 KB
Description:
Silicon pnp transistor.

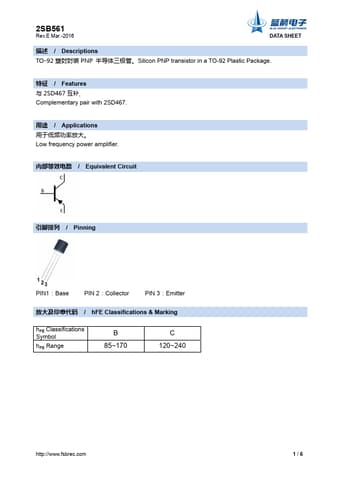

* 2SD467 。 Complementary pair with 2SD467. / Applications 。 Low frequency power amplifier. / Equivalent Circuit / Pinning 1 23 PIN1：Base PIN 2：Collector PIN 3：Emitter / hFE Classifications & Marking hFE Classifications Symbol hFE Range B 85~170 C 120~240 http://www.fsbrec.com 1/6 2
2SB561
BLUE ROCKET ELECTRONICS
784.19 KB
Silicon pnp transistor.
